Canadian Blower VaneAxial Fans

Canadian Blower and Forge VaneAxial inline duct Fans for variable volume air handling applications utilize adjustable pitch high efficiency aerofoil aluminum props to provide optimum performance. Buffalo Type VPS Adjustax have an internal blade pitch adjustment, which allows to bring variable air volume capability for air conditioning, heating and ventilating applications.

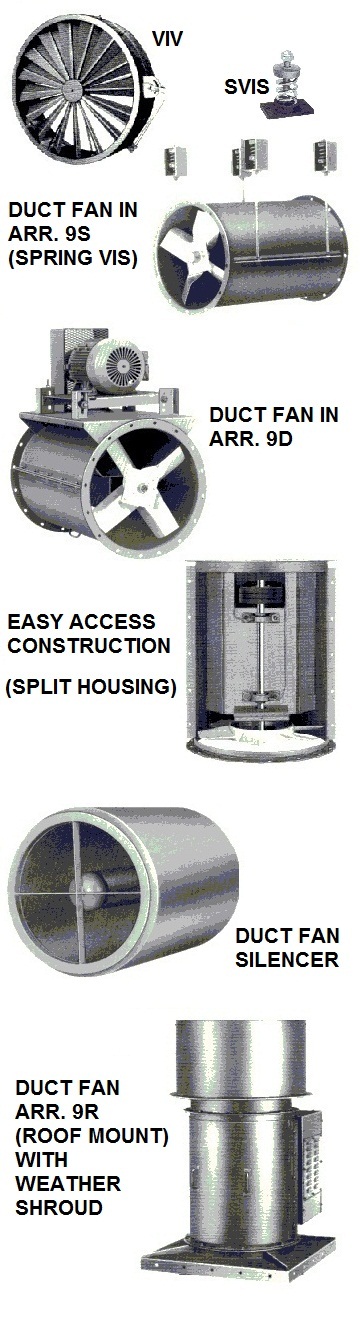

Clamshell Design Vaneaxial Fans are used primarily in applications where ready access to the interior of the fan is desired. The entire bearing assembly can be removed quickly and easily, without removing the fan from the stack. Heavy duty pillow block anti-friction bearings with split inner cylinder are standard. Clamshell design vaneaxial fans are avaiable with steel wheels and aluminum wheels.

SprayBooth Design Vaneaxial Fans are available in standard belt drive arrangement 9. These fans are designed for use in spraybooth installations, or in a variety of applications where requirements make it necessary to clean the fan periodically. Standard accessories include: inlet / outlet cones, inlet bell, screensfor fan, cone, or bell; belt guard, weather proof motor and drive cover, spark resitant construction with aluminum wheels, or steel wheels with bronze tipped blades; support legs, suspension clips, shaft seals are also available as standard options.

Spark Resistant X-proof construction on tubeaxial and vaneaxial fans is available in all aluminum airstream (AMCA A) construction; aluminum wheel (AMCA B) construction; and steel wheel with bronze tipped blades and shaft retainer (AMCA C) construction.

High temperature construction: upon request Buffalo vaneaxial fans can be furnished with optional high temperature construction for oven exhaust, or combusting gases exhaust applications.

Corrosion resistant construction and chemical duty construction: for corrosive environment all vaneaxial fans are available in FRP construction, as well as in 304 SS, 316 SS, or 316 L stainless steel construction. Special coatings are optional and selection is made based on the application.
